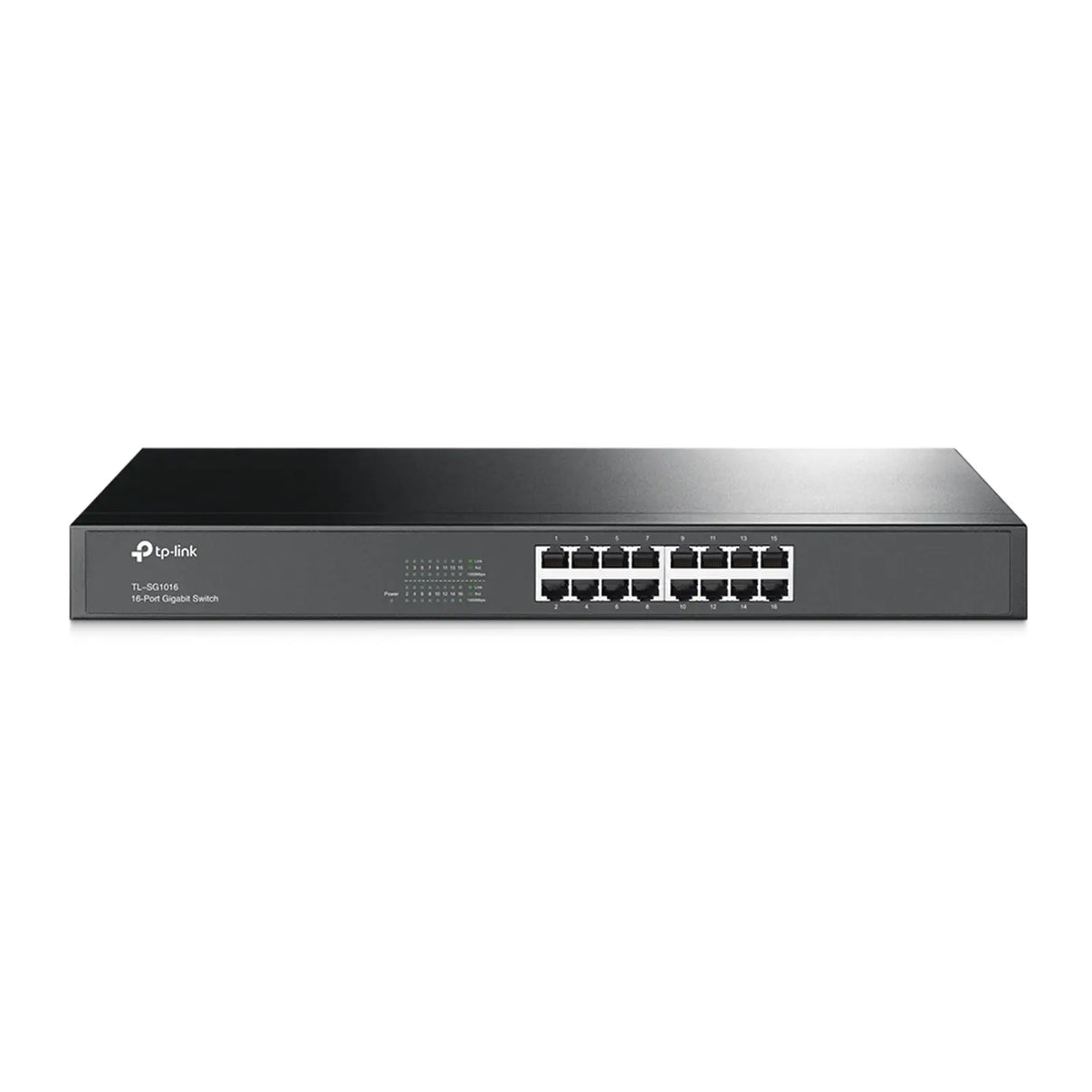

TP-Link TL-SG1016 16-Port Metal Gigabit Rackmount Network Switch

16-Port Gigabit Rackmount Network Switch

Key Features
16 10/100/1000Mbps RJ45 ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case

What This Product Does
The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network

TP-LINK Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface
16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity
Fanless

Physical Security Lock
No

Power Supply
100-240VAC, 50/60Hz

Dimensions ( W x D x H )
17.3*7.1*1.7 in. (440*180*44 mm)

Mounting
Rack Mountable

Max Power Consumption
9.26W(220V/50Hz)

Max Heat Dissipation
31.60BTU/h

PERFORMANCE

Switching Capacity
32Gbps

Packet Forwarding Rate
23.8Mpps

MAC Address Table
8K

Jumbo Frame
10KB

QoS
802.1p/DSCP QoS*
*Only for V12 and later version

Green Technology
Yes

Transfer Method
Store-and-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents
16-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

Environment
Operating Temperature: 0 - 40
Storage Temperature: -40 - 70
Operating Humidity: 10% - 90% non-condensing;
Storage Humidity: 5% - 90% non-condensing
