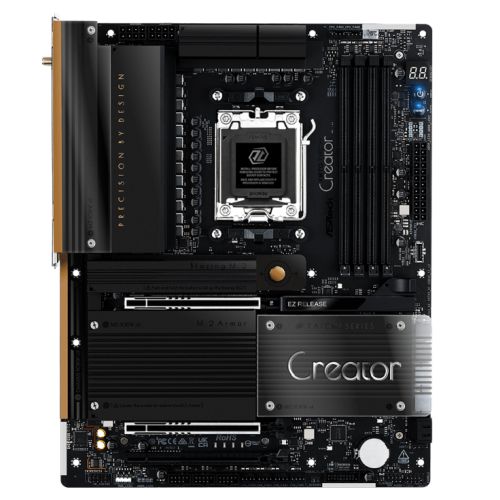

The X870 Taichi Creator features 10GbE and 5GbE LAN, dual USB4 Type-C, dual Gen5 M.2 slots, and dual PCIe 5.0 x16 slots with extra spacing for dual-GPU setups. Its...
The X870 Taichi Creator features 10GbE and 5GbE LAN, dual USB4 Type-C, dual Gen5 M.2 slots, and dual PCIe 5.0 x16 slots with extra spacing for dual-GPU setups.
Its sharp lines, metallic edges, and mirrored nameplate reflect the signature Taichi Creator style—precision meets elegance.
Supports AMD AM5 Socket Ryzen™ 9000, 8000 and 7000 Series Processors
18+2+1 Power Phase, 80A SPS for VCore+SOC
4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC)
2 PCIe 5.0 x16, 1 PCIe 3.0 x16
Graphics Output Options: 1 HDMI, 2 USB4 Type-C
Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
2 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4)
4 SATA3
2 USB4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
2 USB 3.2 Gen2 (Rear)
10 USB 3.2 Gen1 (6 Rear, 4 Front)
8 USB 2.0 (2 Rear, 6 Front)
10Gbps LAN, 5Gbps LAN
802.11be Wi-Fi 7 + Bluetooth
Supports EZ Release Design, Toolless Multi-Layer M.2 Heatsink
